48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units

  • 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units
  • 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units
  • 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units
  • 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units
  • 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units
  • 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units
Luogo di origine Guangdong, Cina
Marca COENG
Certificazione CE, IEC
Numero di modello M11000T-48PL
Documento M series parallel capable 8...-5.pdf
Quantità di ordine minimo 1
Imballaggi particolari Cartone, pallet
Tempi di consegna 10-30 giorni di lavorazione
Termini di pagamento L/C, T/T, Western Union
Capacità di alimentazione 20000 pezzi/mese

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Misurare 540*415*122 mm Tensione della batteria 48v
Tensione di ingresso 230VAC OEM Accetta OEM
Tipo di inverter Inverter solare ibrido Tipo di output Wave sinusoidale singola, pura
Peso lordo 15,5 kg
Evidenziare

48V hybrid solar inverter

,

11kW off grid inverter

,

dual MPPT solar inverter
Lasciate un messaggio
Descrizione di prodotto
M8500T-48PL M11000T-48PL
Model Number M8500T-48PL M11000T-48PL
Place of Origin China China
Mounting Method Wall Bracket Wall Bracket
Nominal Battery Voltage (V) 48VDC 48VDC
Parallel Capacity· YES, 6units YES, 6units
Lithium Battery activation YES( By PV or Utility) YES( By PV or Utility)
Nominal Voltage 230VAC 230VAC
Frequency 50/60Hz 50/60Hz
Waveform Pure Sine wave Pure Sine wave
Solar Charger Type MPPT MPPT
Communication Interface RS232+RS485+Dry-contact RS232+RS485+Dry-contact
PV Array MPPT Voltage Range 60VDC~500VDC 60VDC~500VDC
Surge Power 17000VA 22000VA

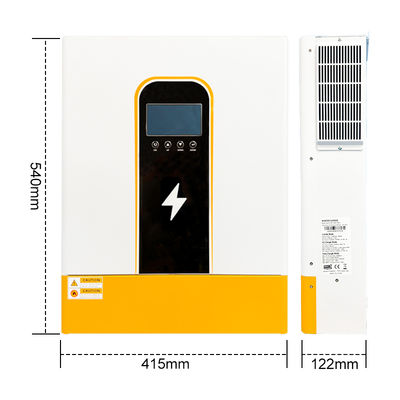

Size 540*415*122mm 540*415*122mm
Weight 14.5kg 15.5kg
Operating Temperature Range (-10'℃ to 50℃) (-10'℃ to 50℃)
Product Features.
  1. Dual AC output
  2. Built-in 2 MPPT
  3. Parallel max up to 6 units
  4. Lithium battery activation function by PV or Utility
  5. Compatible work with LiFePO4 battery via RS485
  6. Pure Sine Wave
  7. Power factor 1.0
  8. PV Input 500Vdc Max
  9. Built-in MPPT 140A/160A
  10. Capable to work without battery
  11. Detachable dust cover for harsh environment
  12. Wifi remote monitoring optional
  13. Support multiple output priority: SuB, SBU, SUF
  14. EQ function to optimize battery performance and extend lifecycle
