3.5kw 24V Hybrid Solar Inverter Single Phase 48V 5.5kw 6.2kw Off Grid MPPT Pure Sine Wave With Lithium Battery Activation

  • 3.5kw 24V Hybrid Solar Inverter Single Phase 48V 5.5kw 6.2kw Off Grid MPPT Pure Sine Wave With Lithium Battery Activation
  • 3.5kw 24V Hybrid Solar Inverter Single Phase 48V 5.5kw 6.2kw Off Grid MPPT Pure Sine Wave With Lithium Battery Activation
  • 3.5kw 24V Hybrid Solar Inverter Single Phase 48V 5.5kw 6.2kw Off Grid MPPT Pure Sine Wave With Lithium Battery Activation
  • 3.5kw 24V Hybrid Solar Inverter Single Phase 48V 5.5kw 6.2kw Off Grid MPPT Pure Sine Wave With Lithium Battery Activation
  • 3.5kw 24V Hybrid Solar Inverter Single Phase 48V 5.5kw 6.2kw Off Grid MPPT Pure Sine Wave With Lithium Battery Activation
  • 3.5kw 24V Hybrid Solar Inverter Single Phase 48V 5.5kw 6.2kw Off Grid MPPT Pure Sine Wave With Lithium Battery Activation
  • 3.5kw 24V Hybrid Solar Inverter Single Phase 48V 5.5kw 6.2kw Off Grid MPPT Pure Sine Wave With Lithium Battery Activation
Luogo di origine Guangdong, Cina
Marca COENG
Certificazione CE, IEC
Numero di modello EM (PV60-500VDC) 6200 48L
Documento EM1.5-6.2.pdf
Quantità di ordine minimo 1
Imballaggi particolari Cartone, pallet
Tempi di consegna 10-30 giorni di lavorazione
Termini di pagamento L/C, T/T, Western Union
Capacità di alimentazione 20000 pezzi/mese

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli

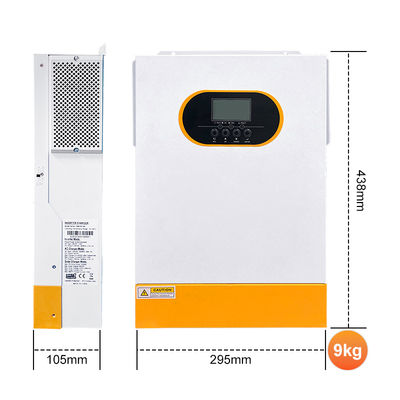

Misurare 438*295*105mm Tensione della batteria 24V/48V
Tensione di ingresso 230VAC OEM Accetta OEM
Tipo di inverter Inverter solare ibrido Tipo di output Wave sinusoidale singola, pura
Peso lordo 9 kg
Evidenziare

24V hybrid solar inverter with MPPT

,

5.5kw off grid pure sine wave inverter

,

lithium battery activation solar inverter
Puoi spuntare i prodotti di cui hai bisogno e comunicare con noi nella bacheca.
Lasciate un messaggio
Descrizione di prodotto

 EM3500-24L EM5500-48L EM6200-48L
Model Number EM3500-24L EM5500-48L EM6200-48L
Place of Origin China China China
Mounting Method Wall Bracket Wall Bracket Wall Bracket
Nominal Battery Voltage (V) 24VDC 48VDC 48VDC
Lithium Battery activation YES( By PV or Utility) YES( By PV or Utility) YES( By PV or Utility)
Nominal Voltage 230VAC 230VAC 230VAC
Lithium Battery communication YES(RS485) YES(RS485) YES(RS485)
Frequency 50/60Hz 50/60Hz 50/60Hz
Waveform Pure Sine wave Pure Sine wave Pure Sine wave
Solar Charger Type MPPT MPPT MPPT
Communication Interface RS232+RS485 RS232+RS485 RS232+RS485
PV Array MPPT Voltage Range 60VDC~500VDC 60VDC~500VDC 60VDC~500VDC
Surge Power 7000VA 11000VA 1240VA
Size 358*295*100mm 438*295*105mm 438*295*105mm
Weight 7kg 9kg 9kg
Operating Temperature Range (-10'℃ to 50℃) (-10'℃ to 50℃) (-10'℃ to 50℃)
Product Features
  1. Lithium battery activation function by PV or Utility
  2. Compatible work with lifepo4 battery via Rs485
  3. PVInput 500Vdc Max
  4. Built-in MPPT60A/100A/120A
  5. Detachable dust coverforharsh environment
  6. Wifi remote monitoring optional
  7. Support multiple output priority:UTL,SOL,SBU,SUB
  8. EQ function to optimize battery performance and extend lifecycle
