High-C High-Capacity Power Converter with Dynamic Drop Compensation for Smooth Motor Performance

  • High-C High-Capacity Power Converter with Dynamic Drop Compensation for Smooth Motor Performance
  • High-C High-Capacity Power Converter with Dynamic Drop Compensation for Smooth Motor Performance
  • High-C High-Capacity Power Converter with Dynamic Drop Compensation for Smooth Motor Performance
  • High-C High-Capacity Power Converter with Dynamic Drop Compensation for Smooth Motor Performance
  • High-C High-Capacity Power Converter with Dynamic Drop Compensation for Smooth Motor Performance
  • High-C High-Capacity Power Converter with Dynamic Drop Compensation for Smooth Motor Performance
Luogo di origine Cina
Marca COENG
Certificazione CE
Numero di modello HD8000
Documento HD8000.xlsx
Quantità di ordine minimo 1
Imballaggi particolari Cassa in legno
Tempi di consegna 10-30 giorni di lavorazione
Termini di pagamento L/C, T/T, Western Union
Capacità di alimentazione 20000SETS/YEAR

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Voltaggio nominale lato rete 2: 1900V 3: 3300V 6: 6600V A: 10kV Tensione nominale del lato del motore 3: 3300V 6: 6600V A: 10kV
Energia 10: 10MVA Metodo di rettifica P: PWM D: rettifica di base dei diodi
Metodo comune di rettifica del bus In bianco: rettifica singola 2: rettifica doppia Metodo comune per l'inverter a bus Disponibilità: singolo D: doppio inverter T: triplo inverter
Evidenziare

high-capacity power converter

,

variable frequency converter with warranty

,

motor performance power converter
Lasciate un messaggio
Descrizione di prodotto
Product Introduction

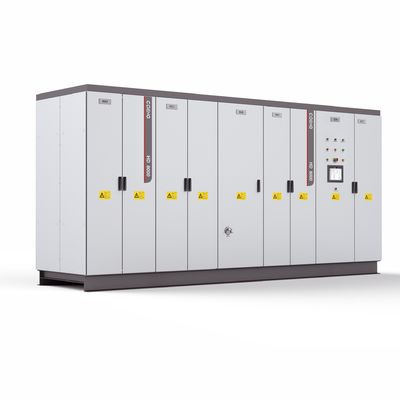

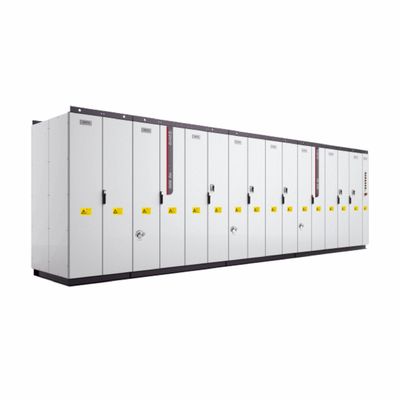

HD8000 series VFD is a high-power drive system includes AC-DC-AC comverter and DC-AC common DC bus multi-axis motor drive unit. The maximum power can reach 30MVA for single machine and 60MVA for parallel operation. Its modular hardware and engineering software design concept enables it to operate for various complex conditions.

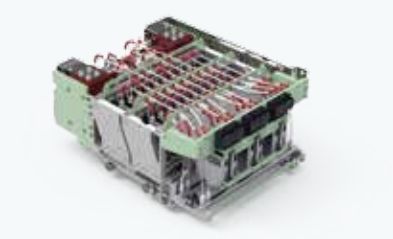

HD8000 series VFD adopts presspack IGCTand Diode as well as liquid cooling method, the whole machine meets the protection level IP54 and it has super environmental adaptability, high reliability, excellent heat dissipation performance and small volume, there are two-quadrant and four-quadrant rectification solutions.

  • Characteristics: single/multiple axis drive, IP54 protection, two-quadrant/four-quadrant
  • Design: modular design
  • Rectification: multi-pulse basic rectification, smart rectification and PWM rectification
  • Voltage rate: 1900V3000V (3300V), 6000V, (6600V), 10000V
  • Maximum power: 30MVA (single) 60MVA (parallel)
  • Compitable motor: asynchronous induction motor, permanent magnet synchronous motor, Electrically excited synchronous motor
  • Control method: V/F, close-loop vector control with sensor, open-loop vector control without sensor
  • Cooling: water cooling
Product Applicantion

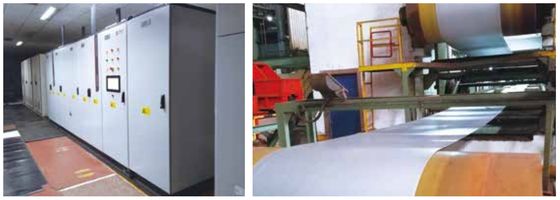

  • Metallurgical Engineering
  • Oil and Gas Transportation
  • Testing Platform
  • Renewable Energy
  • Rail Transportation
  • Mining&Lifting
  • Marine Equipment
  • LNG
  • Power Source
  • Energy Storage
Technical Specification
HD8000 Technical Specifications
HD8000 3306 3308 3310 3312 2624 AA30 6640 AA60
R Basical ectification Input voltage 3300V 1900V 10kV 6600V 10kV
Input frquency 45Hz-66Hz
Overload 110%@ rated current, 120%@ rated current 60s
Efficiency ≥99%
Power factor ≥0.95 (Rated current, equipped with 2% AC input reactor)
Protection overload protection, overheat protection, short circuit protection, fault pre-judgment, etc
RecPWM
tification		 Input frquency 45Hz-66Hz
Overload 110%@ rated current, 120%@ rated current 60s
Efficiency ≥98.5%
Power factor adjustable (default 1)
Protection overload protection, overheat protection, short circuit protection, fault pre-judgment, etc
Inverter Output voltage 3300V 6600V 10kV 6600V 10kV
Max output frequency

110Hz
Speed stable accuracy OLVC: 0.01%, CLVC: 0.01% OLVC: 0.01%, CLVC: 0.01%
Speed pulse OLVC: 0.2%, CLVC: 0.1% OLVC: 0.4%, CLVC: 0.2%
Start torque OLVC: 150%, CLVC: 200% OLVC: 130%, CLVC: 150%
Torque control V/F: Yes, OLVC: Yes, CLVC: Yes V/F: Yes, OLVC: Yes, CLVC: Yes
Torque accuracy OLVC: 5%, CLVC: 2% OLVC: 5%, CLVC: 2%
Torque response time OLVC: 5ms, CLVC: 5ms OLVC: 5ms, CLVC: 5ms
Rotating response time OLVC: 100ms, CLVC: 100ms OLVC: 150ms, CLVC: 150ms
Dynamic drop equivalent OLVC: 0.5%*s, CLVC: 0.25%*s OLVC: 1%*s, CLVC: 0.5%*s
Overload 110%@rated current, 120%@rated current 60s
Environment Temperature inlet temperature ≤40
Altitude ≤4000m (2000m~4000m de-rating)
Mechanical Data IP protection IP54
Cooling Water cooling
Anti corrosion C4-M
HD8000 Series Selection Table
Module Grid Voltage Motor Voltage Power RatedI Max f Size (W*D*H) (mm) Note
HD8000-3306 3300V 3300V 6MVA 1050A 110Hz 4600*1300*2200 Contains water cool cabinet
HD8000-3308 8MVA 1400A
HD8000-3310 10MVA 1750A
HD8000-3312 12MVA 2100A
HD8000-2624 1900V 6600V 24MVA 2100A 7800*1300*2200
HD8000-AA30 10kV 10kV 30MVA 1750A 10600*1300*2200
HD8000-6640 6600V 6600V 40MVA 3500A 15600*1300*2200
HD8000-AA60 10kV 10kV 60MVA 3500A 21200*1600*2200
High-C High-Capacity Power Converter with Dynamic Drop Compensation for Smooth Motor Performance 0High-C High-Capacity Power Converter with Dynamic Drop Compensation for Smooth Motor Performance 1High-C High-Capacity Power Converter with Dynamic Drop Compensation for Smooth Motor Performance 2
Advantages and characteristics of battery energy storage systems in differentcountries
1. Vietnam
  • Suitable for textile, footwear, and food processing.
  • Handles humid and corrosive environments.
  • Easy to operate with minimal training.
  • High overload tolerance for unstable grids.
  • Affordable and efficient operation.
  • Local technical support and spare parts availability.
  • Compact size fits small and medium factories.
  • Compatible with Japanese and Korean motor standards.
2. Poland
  • Ideal for manufacturing and automotive sectors.
  • High efficiency reduces operational costs.
  • Supports EU energy and safety standards.
  • Easy integration with European automation systems.
  • Robust construction for harsh industrial environments.
  • Water cooling ensures stable performance.
  • High torque accuracy for precision applications.
  • Local service and training support.
3. Argentina
  • Suitable for agriculture, mining, and energy sectors.
  • Handles voltage fluctuations in remote areas.
  • High starting torque for pumps and compressors.
  • Easy to maintain with local technical support.
  • Resilient to harsh weather conditions.
  • Energy-saving operation reduces costs.
  • Compatible with common South American motor brands.
  • Durable and long-lasting design.
4. Nigeria
  • Built for unstable grid conditions with wide input range.
  • Ideal for oil, gas, and mining industries.
  • High dust and moisture protection.
  • Easy to install and commission.
  • Affordable and reliable performance.
  • Local service network for quick support.
  • High overload capacity for heavy machinery.
  • Low maintenance requirements.
5. Sweden
  • High energy efficiency supports sustainability goals.
  • Suitable for pulp & paper, marine, and HVAC applications.
  • Quiet operation for noise-sensitive areas.
  • Complies with EU CE and PED directives.
  • Advanced control for precision engineering.
  • Reliable in cold climates with anti-condensation features.
  • Easy to integrate with ABB and Siemens systems.
  • Long service intervals reduce operational costs.
